Rokae xMate ROS2 User Manual

Item	Description
Document Name	Rokae xMate ROS2 User Manual
Applicable Products	Rokae xMate collaborative / industrial robot series (see "Supported Models")
Platform	Ubuntu 22.04 LTS, x86_64
ROS2 Distribution	Humble
Document Version	V0.0.2 (adapted to ROS2 package v0.0.2)
Release Date	2026/04/10

---

Document Information

Revision History

Version	Date	Notes
V0.0.2	2026/04/10	Full restructuring based on the original rokae ros2使用手册.md: unified chapter structure, table format, and terminology; added servej example code.

Scope and Target Readers

This manual explains how to obtain, build, and run the Rokae ROS2 (rokae_ros2) packages in a ROS2 Humble environment, and how to get started with simulation and real-hardware integration using ros2_control + MoveIt 2.

Target readers: developers who already understand ROS2 basics (workspace, node, topic, service, launch) and want to integrate Rokae xMate robots into their own applications.

Important Notes

• This document is updated together with the open-source / delivered packages. For exact interfaces and parameters, refer to source code and package.xml in the repository.
• Operations related to robot motion, real hardware networking, and safety must be performed under qualified supervision.

---

Chapter 1 Overview

1.1 Introduction to ROS2

ROS2 (Robot Operating System 2) is an open-source middleware stack for robotics. Compared with ROS 1, ROS2 improves real-time capability, security, lifecycle management, and cross-platform support.

Key differences from ROS 1:

• Decentralized communication: DDS-based discovery and data transport, less dependency on a central roscore.
• Node lifecycle: standardized configure / activate / ... states for industrial integration.
• Build system: ament + colcon workflow, replacing catkin.

1.2 Purpose and Scope

Purpose

This manual provides guidance for installation, compilation, and environment setup of Rokae ROS2 packages, and basic operation steps for MoveIt 2 + ros2_control in simulation and on real robots.

Scope

Current package versions cover the following xMate models (future versions may expand, and users can adapt additional models using the same approach):

1.3 Supported Models

Series	Model IDs (robot_type, etc.)
AR	xMateAR5L, xMateAR5R
CR	xMateCR7, xMateCR12, xMateCR18, xMateCR20
ER	xMateER3, xMateER7
Pro	xMatePro3, xMatePro7
SR	xMateSR3, xMateSR4, xMateSR5

---

Chapter 2 Installation and Environment

2.1 Hardware and OS Requirements

Rokae ROS2 is mainly developed and validated on Ubuntu 22.04 LTS + ROS2 Humble. Other distributions or ROS versions may be incompatible.

Component	Minimum / Recommended	Notes
CPU	64-bit Intel i5 / i7 or equivalent AMD; 8+ cores recommended	1000 Hz real-time mode is compute-sensitive
Memory	8 GB; 16 GB recommended	MoveIt 2 and RViz2 consume significant memory
Disk	>= 20 GB free space	SSD significantly reduces build/startup time
GPU	CUDA-capable NVIDIA GPU (optional)	Not required

2.2 Install ROS2 and Dependencies

1. Install ROS2 Humble (see official documentation).
2. Install common dependencies for this package:

sudo apt update
sudo apt install ros-humble-moveit
sudo apt install ros-humble-controller-manager
sudo apt install ros-humble-joint-state-broadcaster
sudo apt install \
  ros-humble-joint-state-publisher \
  ros-humble-forward-command-controller \
  ros-humble-effort-controllers \
  ros-humble-velocity-controllers \
  ros-humble-position-controllers \
  ros-humble-joint-trajectory-controller

If dependencies are still missing, install according to error prompts using sudo apt install ros-humble-<package>.

source /opt/ros/humble/setup.bash

2.3 Create Workspace and Build

mkdir -p ~/ros2_ws/src
# Copy rokae_ros2 packages to ~/ros2_ws/src
cd ~/ros2_ws
colcon build

Add environment setup (recommended in ~/.bashrc):

source /opt/ros/humble/setup.bash
source ~/ros2_ws/install/local_setup.sh
source ~/ros2_ws/install/setup.bash

---

Chapter 3 Package Structure

3.1 Workspace Top-level Directories

doc/
rokae_description/
rokae_hardware/
rokae_msgs/
rokae_xMateAR5L_moveit_config/
... (other model-specific MoveIt config packages)

3.2 rokae_hardware Package Layout

CMakeLists.txt
config/
include/
launch/
package.xml
rokae_hardware_interface.xml
sdk/
src/

3.3 Main Source Files in rokae_hardware/src

File	Description
connect_test.cpp	Network performance analysis test
movej_client.cpp	movej client example
movej_moveit_test.cpp	MoveIt-based movej example
rokae_driver.cpp	ROS2 service wrapper for 6-axis models
rokae_driver7.cpp	ROS2 service wrapper for 7-axis models
rokae_hardware_interface.cpp	ros2_control SystemInterface implementation

---

Chapter 4 Architecture and Quick Start

4.1 ROS2 Control Architecture

This package follows the standard ROS2 Control architecture:

Category	Location	Purpose
Controller config	rokae_hardware/config/*.yaml	Declares joint_state_broadcaster, joint_trajectory_controller, etc.
Robot description	rokae_description/urdf/*.xacro	Defines joints and hardware plugin params via <ros2_control>
Hardware interface plugin	rokae_hardware/src/rokae_hardware_interface.cpp	Calls vendor SDK and implements read / write

4.2 RViz + MoveIt 2 Planning with Real Robot

Prerequisites:

1. MoveIt 2, ros2_control, and package dependencies installed.
2. Correct network setup (robot_ip, local_ip).

Launch example:

ros2 launch rokae_hardware rokae_moveit_launch.py \
  robot_type:=SR4 \
  use_fake_hardware:=true \
  robot_ip:=192.168.2.160 \
  local_ip:=192.168.2.1

Parameter notes:

Parameter	Meaning
robot_type	Model shorthand, e.g. SR4, CR7, AR5L, AR5R, ER7, Pro7
robot_ip	Robot controller IP
local_ip	PC IP for the NIC connected to controller
use_fake_hardware	true: simulation mock_components/GenericSystem; false: real hardware plugin

Recommendation: validate MoveIt and controller chain with use_fake_hardware:=true first, then switch to real hardware.

4.2.4 RViz Planning Operation Tips

1. The yellow model is the target pose, white is the current pose, and semi-transparent gray is the start pose.
2. Drag the interactive marker (end-effector sphere), or use MotionPlanning -> Joints to modify target joint angles.
3. Click Plan & Execute to generate and execute the trajectory.
4. For repeated planning, drag the end marker again to refresh target values in the Joints panel.
5. Speed scaling: MotionPlanning -> Planning -> Options -> VelocityScaling (0-1).

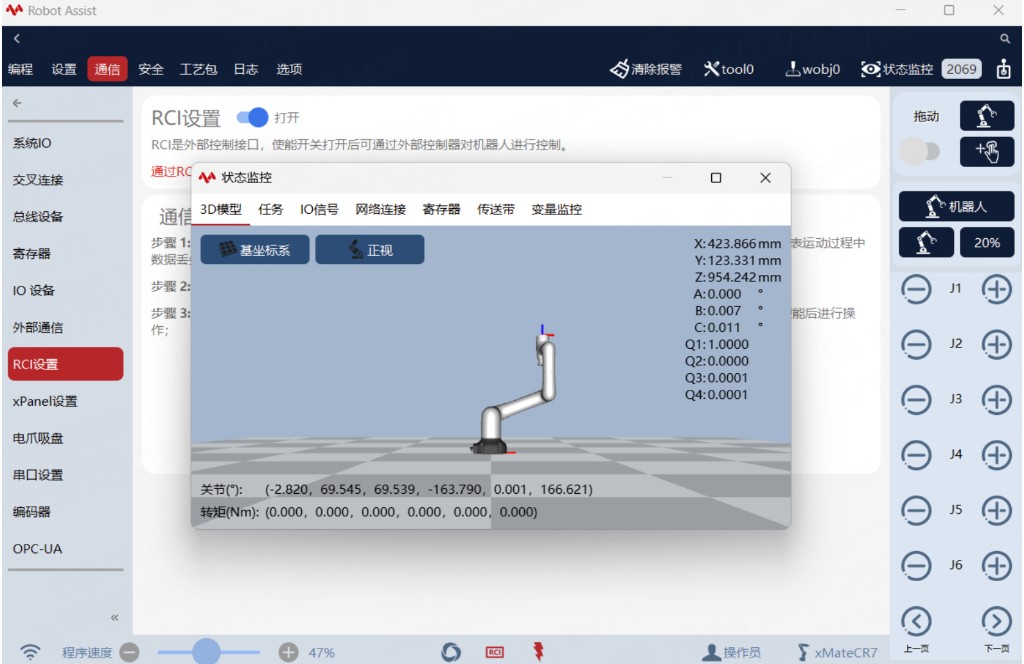

Figure 1 HMI Status Monitor

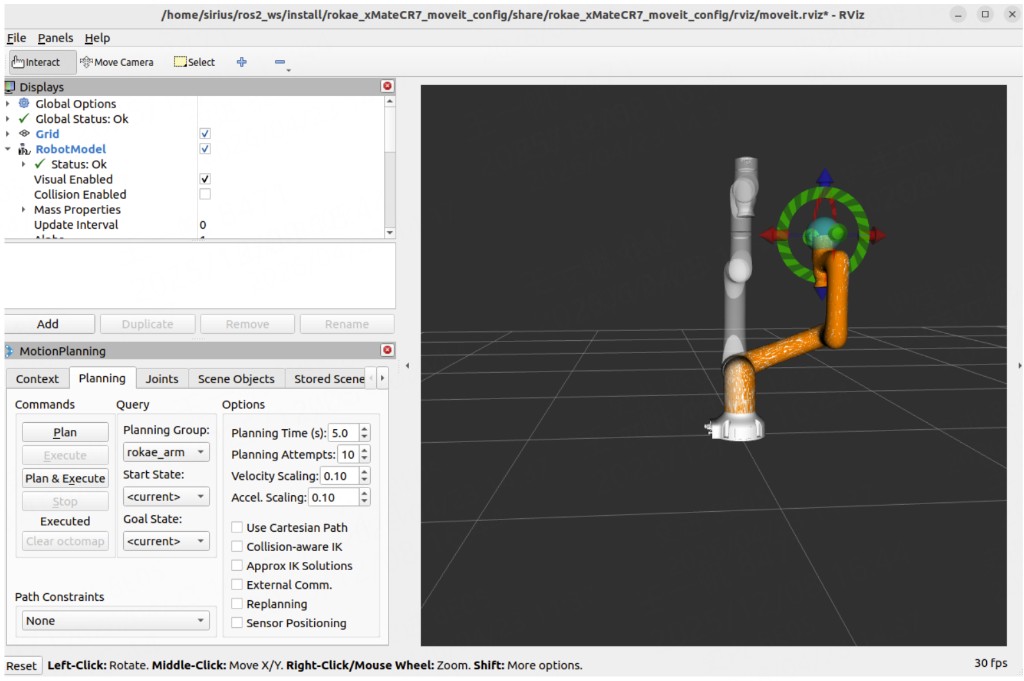

Figure 2 RViz Visualization

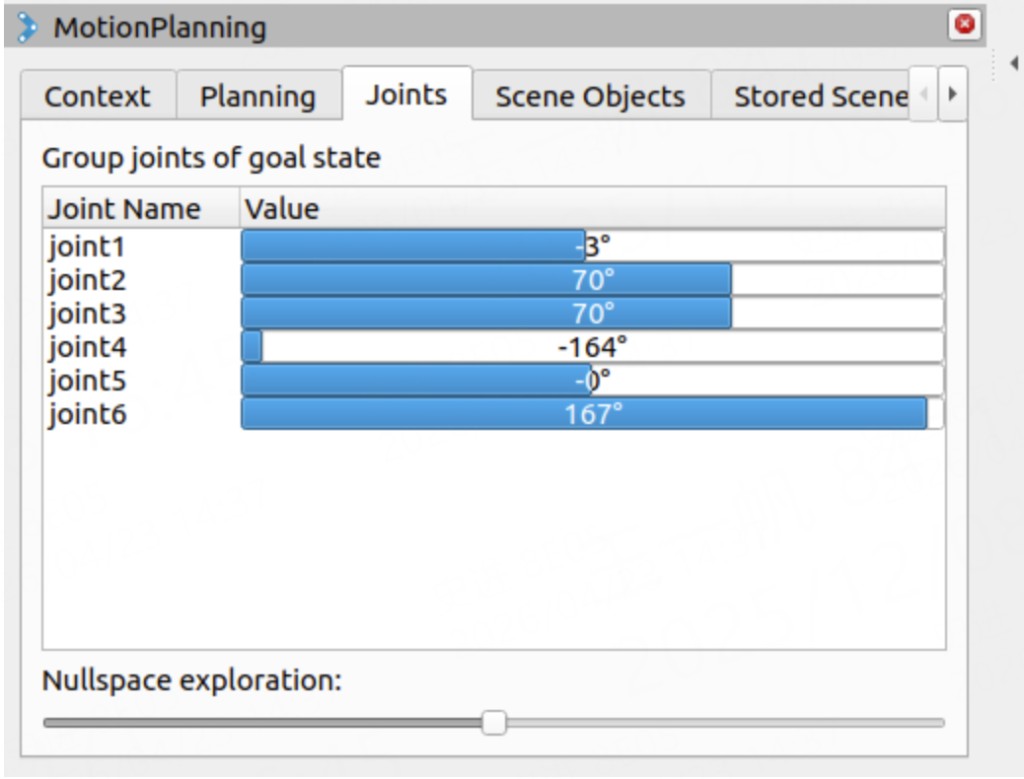

Figure 3 Set target position via MotionPlanning -> Joints

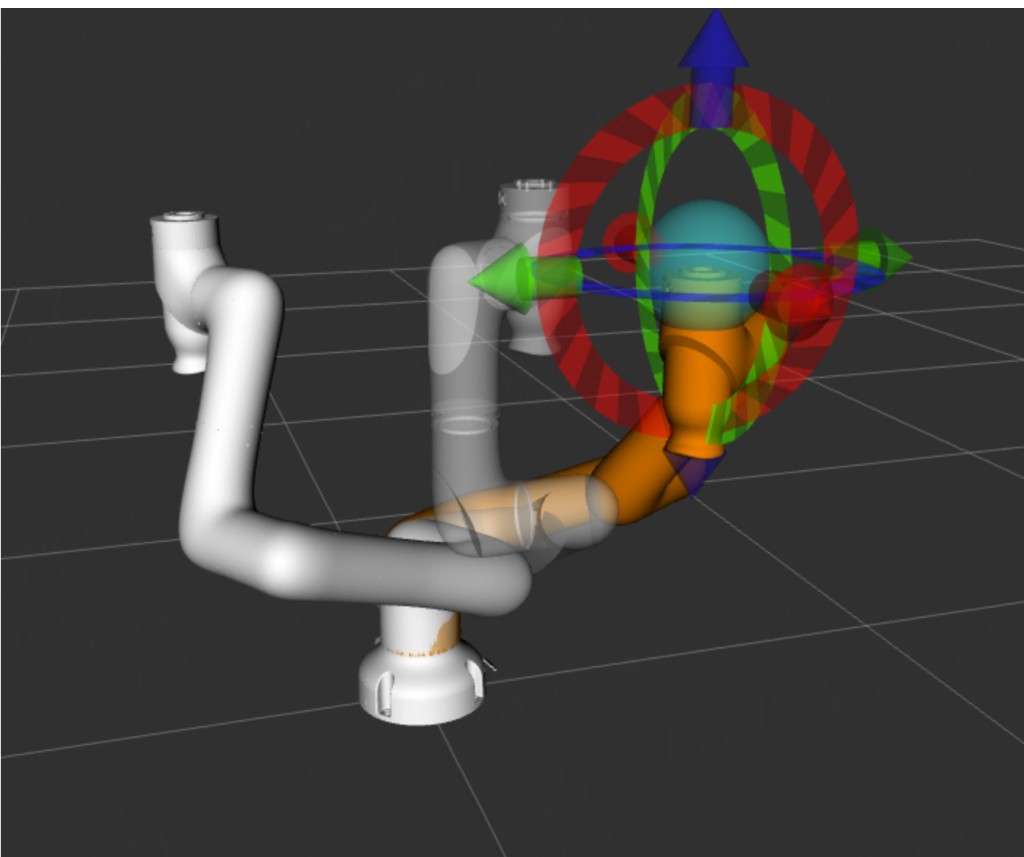

Figure 4 RViz target pose and current pose

4.3 MoveIt-based movej Example

ros2 launch rokae_hardware controll_movej.launch.py robot_type:=SR4

Key points in movej_moveit_test.cpp:

• Set pose reference frame to model-specific base frame.
• Joint target vector dimension must match DOF.
• MoveGroup name must match <group name=\"...\"> in SRDF.

4.4 Common Nodes / Topics / Actions

Node commands:

ros2 node list
ros2 node info /<node_name>

Topic commands:

ros2 topic list
ros2 topic info /<topic_name>
ros2 topic echo /<topic_name>

Action commands:

ros2 action list
ros2 action info /<action_name>

4.5 rokae_driver Interfaces

rokae_driver / rokae_driver7 wrap part of xCore APIs as ROS2 Services and Topics.

Typical services:

• /rokae_driver/get_robot_info
• /rokae_driver/jog_control
• /rokae_driver/drag_control
• /rokae_driver/calculate_fk
• /rokae_driver/calculate_ik
• /rokae_driver/movej, /movel, /movec
• /read_register, /write_register

Typical topics:

• /rokae_driver/joint_states
• /rokae_driver/cartesian_pose

Startup examples:

ros2 run rokae_hardware rokae_driver --ros-args \
  -p robot_ip:=192.168.2.160 -p local_ip:=192.168.2.100

ros2 launch rokae_hardware rokae_driver.launch.py \
  robot_ip:=192.168.2.160 local_ip:=192.168.2.100

Service call example:

ros2 service call /rokae_driver/get_robot_info rokae_msgs/srv/GetRobotInfo

---

Chapter 5 Extension and Customization

5.1 Adapt New Robot Models

1. Add new URDF / xacro, meshes, and collision models in rokae_description.
2. Update rokae_description/urdf/xMate.urdf.xacro and xMate_macro.xacro; add corresponding *.ros2_control.xacro.
3. Use MoveIt Setup Assistant to generate the new model's *_moveit_config package and align file organization with existing model packages.

---

Appendix A Glossary

Term	Description
robot_type	Model shorthand in launch files; used to select URDF, controller YAML, MoveIt config package
use_fake_hardware	Whether to use simulation GenericSystem plugin
flangeInBase	SDK coordinate type: flange relative to base frame
endInRef	SDK coordinate type: tool/end-effector relative to reference frame

---

Appendix B Feedback and Support

If document content differs from code behavior, always refer to the latest repository version.
When reporting issues, include: ROS2 distribution, Ubuntu version, robot model, robot_type, full launch command, and terminal logs.
